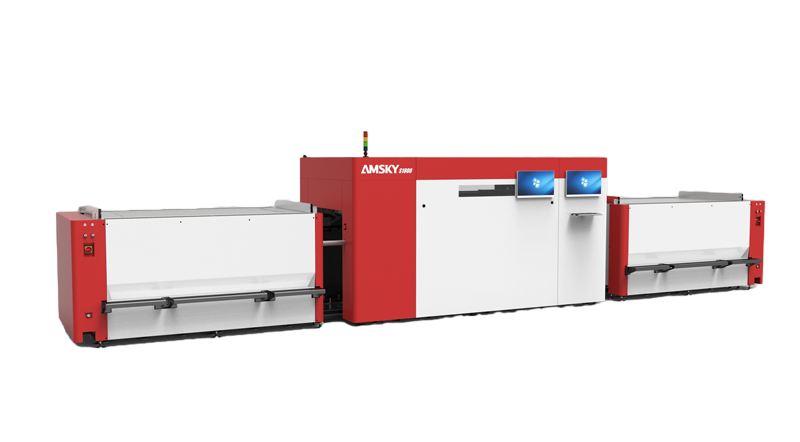

3D Sand Mold Printing Machine
Sandstorm S1800
Sandstorm S1800 Sand mold 3D printing system：Adopts the self-developed 3D printing head with independent intellectual property rights. Printing size of 1800×1000×730mm (L x W x H) meets the most printing needs for sand casting mold.Sales Contact（overseas market）:
Technical advantages of Sandstorm S1800
- The patented printing head is compatible with different consumables, so users can choose freely without restrictions.
- The self-developed slicing software and 3D printing control software can achieve all functions, including automatic slicing, printing data packet distribution, and host control.
- Supports touch screen and one-click automatic operation which ensures easy maintenance and upgrade capabilities in the future.
- Small footprint of S1800 requires little space and easy to install at any sites. No special environment requirement is needed. The mainframe size is 9000 × 1900 × 1950mm (L × W × H). The printing time for a full box is about 12 hours, and the stand
- Printing size of 1800×1000×730mm (L x W x H) meets the most printing needs for sand casting mold.
Technical specifications
|
Sand mold size |
1800×1000×730mm （L×W×H） |
|
Layer thickness |
0.3~0.5mm |
|
Printing resolution |
300~550dpi |
|
Printing speed |
20s/layer |
|
Precision accuracy |
≤300mm，±0.3mm ＞300mm，±0.1%（max） |
|
Printing head QTY |
8 heads（AMSKY 512 print head） |
|
Printing chamber |
2 units |
|
Mainframe size |
9000×1900×1950mm （L×W×H） |
|
Net weight |
About 10 Ton（including 1 host, 2 chambers, 2 cleaning tables, 1 mixing box. |
|
Voltage |
380V±10%，50-60HZ； |
|
Power 3 phase, average |
6kw, peak:10kw |
|
Air consumption |
≥600L/min |
|
Environment Temperature |
22~38℃, Humidity：≤60% |
